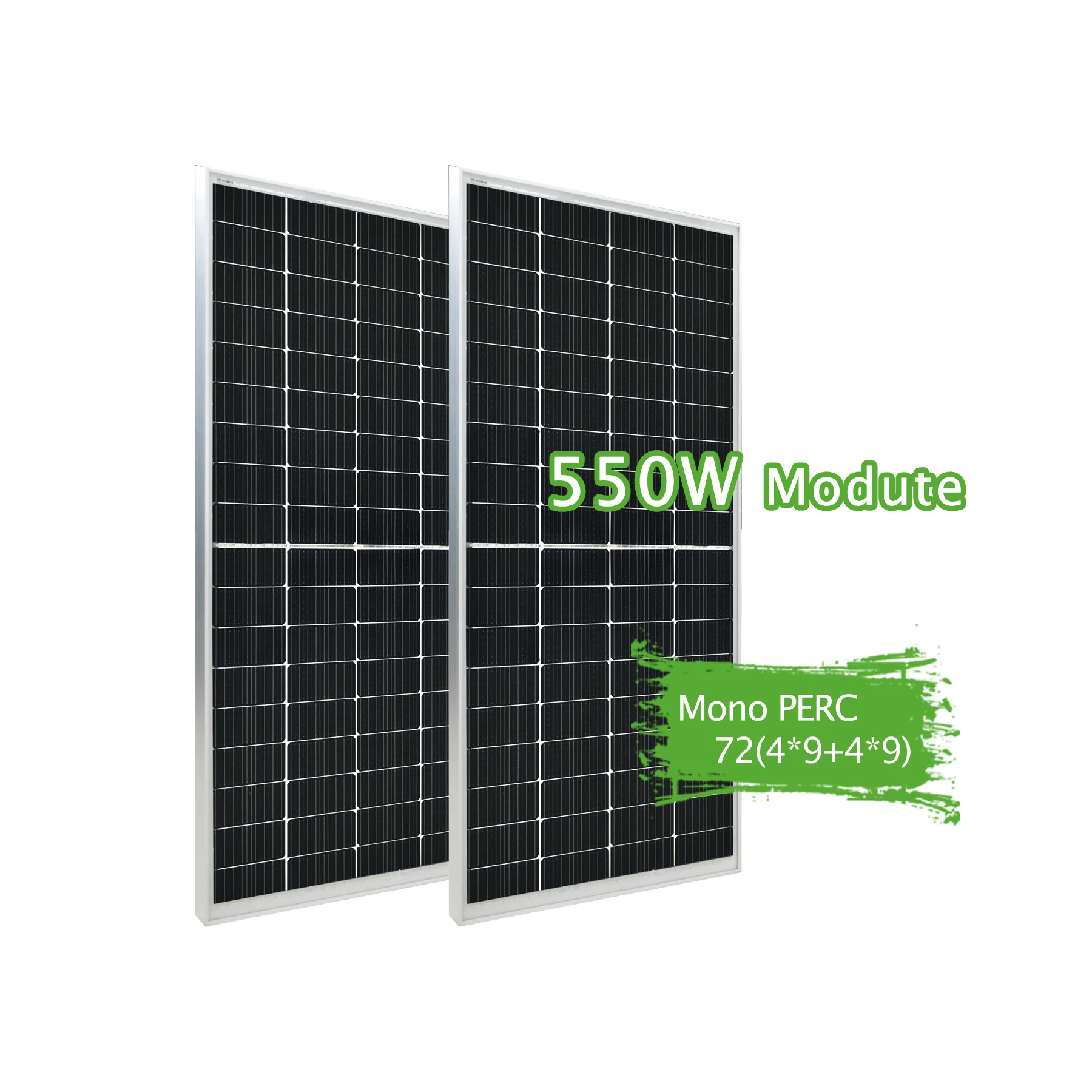

Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type

Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type

Inquiry
  • Overview
  • Inquiry
  • Related Products
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type
Product Description
Adopting multi-main shed (MBB) half-sheet technology, the output power is away from 550W, and the conversion efficiency of the module reaches 21.28%.
Anti-PID performance. The PID (Potential Induced Degradation) resistance authority test(85°C/85% RH, 96 hours) under the harsh conditions of the industry minimizes the chance of degradation caused by the PID.
10 main grid cells. All the cells are upgraded to 9 main grid cells，which have stronger current collection capability and more stable power output.
Electrical performance parameters under STC
Model
DHM72D30-525/MR
DHM72D30-530/MR
DHM72D30-535/MR
DHM72D30-540/MR
DHM72D30-545/MR
DHM72D30-550/MR
Maximum power（W)
525W
530W
535W
540W
545W
550W
Voltage at maximum power point (VMP/V)
41.13V
41.43V
41.72V
42.02V
42.32V
42.61V
Current at maximum power point (IMP/A)
12.76A
12.79A
12.82A
12.85A
12.88A
12.91A
Open circuit voltage (VOC/V)
49.99V
49.14V
49.29V
49.43V
49.59V
49.74V
Short circuit current (ISC/A)
13.67A
13.74A
13.81A
13.88A
13.95A
14.02A
Component efficiency [%]
20.26%
20.45%
20.65%
20.84%
21.03%
21.23%
Power tolerance(W)
0～+5
Standard test environment
Irradiance1000W/m², ambient temperature25℃, spectrumAM1.5
Note: Due to continuous innovation, research and product upgrades, the parameters in this specification do not refer to a single component and can only be used for comparison between types.
1. Mechanical load. Certified for wind load of 2400 Pa at the back of the assembly and snow load of 5400 Pa at the front.
2. Excellent low light power generation performance. Excellent electrical performance output under low light conditions.
3. Low light attenuation. Rigorous ATLAS steady-state light testing ensures excellent photoluminescence performance for each batch of modules.
4. Rigorous EL testing. Spatial resolution is less than 0.5 mm,and more than two EL tests before and after to ensure zero defect inside the component.
5. Fully automated component production line. Guarantee 100% online production 100% online inspection to ensure consistent product quality.
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type factory
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type details
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type details
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type supplier
Related Products
Certificate
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type manufacture
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type details
Packing&Shipping
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type details
According to your products requirements , we will choose safe and economical
transportation for you.
Carton packaging 30 pieces per pallet
Payment method: 30% T/T in advance, 70% T/T before shipment
Company Introduction
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type supplier
●100% fully automatic production line,ensuring 100%in-line inspection on the production line. Effectively avoiding the risk of hidden cracks and inherent defects.improving efficiency, reducing manual errors,precision welding,and maintaining uniform product quality standards.
●First-class photovoltaic testing center, up to 38 valid tests and experiments to ensure product quality.
●High, medium and low current classification to improve system output performance.
●Two EL tests before and after.12-focus EL to overcome depth-of-field differences,spatial resolution of 0.4-0.5 mm high and low currents are tested separately, with zero tolerance for quality risks.
●Long-term reliability testing.The PV testing center follows the standard of 3 times thousand conventional tests to guarantee the longer life cycle of the modules.
Solar panel 550W 585W 580W Grade-A Solar Panels High Quality with Low Price featuring N-Type PERC Topcon Half Cell Type supplier
FAQ
1. Q: Why choose we?
A: 12-year product materials and workmanship warranty and 25-year
linear power output warranty.
B: Anti-PID (Potential Induced Degradation) performance and rigorous EL testing.
C: Excellent low light power generation performance and fully automated component production line.
2. Q: Can I have my own customized product?
A: Yes, our customized requirements for logo, design, outer package are available.
3. Q: What certificates do you have?
A: Our solar products have got ISO (International Standardization Organization), CQC (China Quality Certification), CE (Council of Europe) and TUV (Technischen Uberwachungs Vereine).
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5. Q:Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
