Jinko 4650W 475W 565W 575W 585W 580W 550W N P type all black home solar panels Big factory spot cheap price

Product introduction

Electrical performance parameters under STC
Model ：TW***MAP-108-H-F
Maximum power Pmax[W]	380	385	390	395	400	405	410
Open circuit voltage Voc[V]	36.58	36.71	36.85	36.98	37.07	37.23	37.38
Short circuit current Isc[A]	13.44	13.52	13.61	13.7	13.79	13.87	13.93
Voltage at maximum power point Vmp [V]	30.28	30.46	30.64	30.84	31.01	31.21	31.4
Current at maximum power point Imp [A]	12.55	12.64	12.73	12.81	12.9	12.98	13.06
Component efficiency [%]	19.5	19.7	20	20.2	20.5	20.7	21

Electrical performance parameters under NMOT
Maximum power Pmax[W]	286	290	294	298	302	306	310
Open circuit voltage Voc[V]	34.36	34.49	34.62	34.75	34.88	35.12	35.31
Short circuit current Isc[A]	10.75	10.82	10.89	10.96	11.03	11.1	11.16
Voltage at maximum power point Vmp [V]	28.51	28.68	28.87	29.08	29.26	29.47	29.68
Current at maximum power point Imp [A]	10.03	10.11	10.18	10.25	10.32	10.38	10.44
Module nominal operating temperature (NMOT): irradiance=800W/m2, ambient temperature=20 ℃, AM=1.5, wind speed: 1m/s

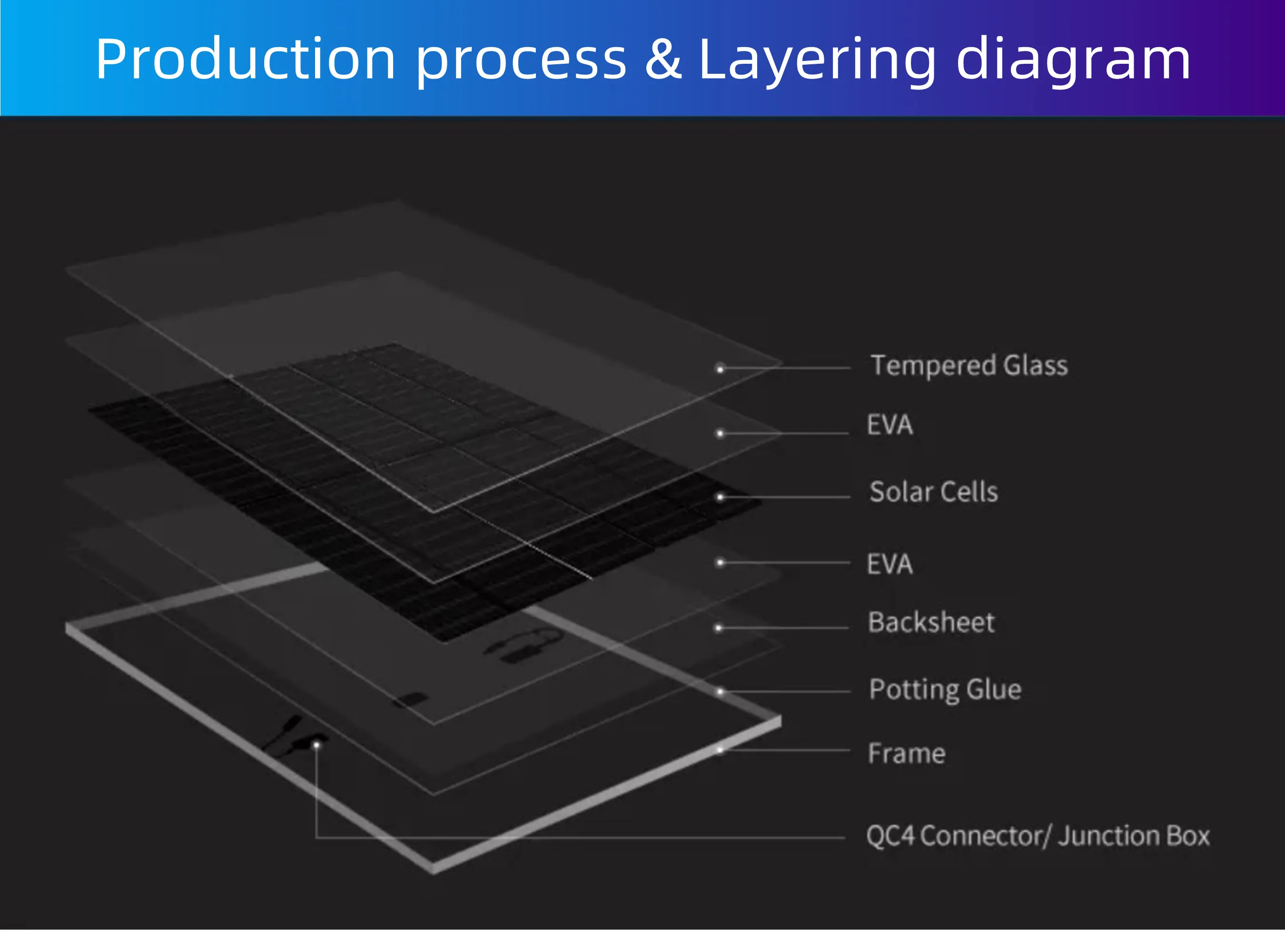

Mechanical properties
Cell type	monocrystalline
Number of cells	108(6*18)
Component size	1722±21134±230mm
Component weight	20.5kg
Front glass	3.2mm high transmittance and anti-reflection coated tempered glass
Backsheet	White
Component frame	Anodized aluminum alloy
Junction box	IP68, 3 diodes
Cable cross-sectional area	4.0 mm²
Cable length	The positive cable is 280mm, and the negative cable is 280mm
Connector	MC4 compatible connector
Wind pressure/snow pressure	2400Pa/5400Pa
Packaging information	36 pieces
40HQ Container	936 pieces
