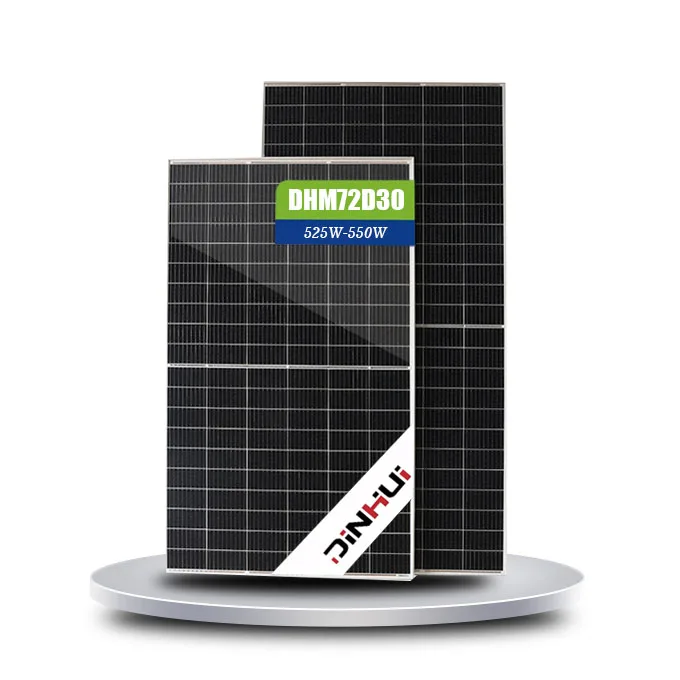

Double glass and bifacial 525W 535W 540W 545W 550W 555W solar panels for commercial 500W solar pv module paneles solares

Inquiry

Overview
Inquiry
Related Products

Product Description

1. Adopting multi-main shed (MBB) half-sheet technology, the output poweris away from 550W, and the conversion efficiency of the module reaches 21.23%.

2. Anti-PID performance. The PID (Potential Induced Degradation) resistance authority test(85°C/85% RH, 96 hours) under the harsh conditions of the industry minimizes the chance of degradation caused by the PID.
3.10/11 main grid cells. All the cells are upgraded to 10/11 main grid cells,which have stronger current collection capability and more stable power
4. Mechanical load. Certified for wind load of 2400 Pa at the back of the assembly and snow load of 5400 Pa at the front.
5. Excellent low light power generation performance. Excellent electrical performance output under low light conditions.
6. Low light attenuation. Rigorous ATLAS steady-state light testing ensures excellent photoluminescence performance for each batch of modules.
7. Rigorous EL testing. Spatial resolution is less than 0.5mm,and more than two EL tests before and after to ensure zero defects inside the component.
8. Fully automated component production line. Guarantee 100% online production100% online inspection to ensure consistent product quality.

Double glass and bifacial 525W 535W 540W 545W 550W 555W solar panels for commercial 500W solar pv module paneles solares factory

Double glass and bifacial 525W 535W 540W 545W 550W 555W solar panels for commercial 500W solar pv module paneles solares details

Double glass and bifacial 525W 535W 540W 545W 550W 555W solar panels for commercial 500W solar pv module paneles solares manufacture

Double glass and bifacial 525W 535W 540W 545W 550W 555W solar panels for commercial 500W solar pv module paneles solares supplier

Product Paramenters

Electrical performance parameters under STC

Model

DHM72D30-525/MR

DHM72D30-530/MR

DHM72D30-535/MR

DHM72D30-540/MR

DHM72D30-545/MR

DHM72D30-550/MR

Maximum power（W)

525W

530W

535W

540W

545W

550W

Voltage at maximum power point (VMP/V)

41.13V

41.43V

41.72V

42.02V

42.32V

42.61V

Current at maximum power point (IMP/A)

12.76A

12.79A

12.82A

12.85A

12.88A

12.91A

Open circuit voltage (VOC/V)

49.99V

49.14V

49.29V

49.43V

49.59V

49.74V

Short circuit current (ISC/A)

13.67A

13.74A

13.81A

13.88A

13.95A

14.02A

Component efficiency [%]

20.26%

20.45%

20.65%

20.84%

21.03%

21.23%

Power tolerance(W)

0～+5

Standard test environment

Irradiance1000W/m², ambient temperature25℃, spectrumAM1.5

Note: Due to continuous innovation, research and product upgrades, the parameters in this specification do not refer to a single component and can only be used for comparison between types.

Electrical performance parameters under NOCT

Model

DHM72D30-525/MR

DHM72D30-530/MR

DHM72D30-535/MR

DHM72D30-540/MR

DHM72D30-545/MR

DHM72D30-550/MR

Maximum power （W)

562W

567W

572W

578W

583W

589W

Voltage at maximum power point (VMP/V)

41.51V

41.75V

42.00V

42.23V

42.44V

42.64V

Current at maximum power point (IMP/A)

13.53A

13.58A

13.63A

13.68A

13.74A

13.80A

Open circuit voltage
(VOC/V)

49.51V

49.64V

49.77V

49.92V

50.05V

50.22V

Short-circuit current (ISC/A)

14.32A

14.36A

14.42A

14.48A

14.54A

14.59A

Back reflectivity

10%

Recommend Products

Packing & Delivery

Carton packing 30 pieces per pallet

According to your products requirements , we will choose safe and economical transportation for you.

Company Profile

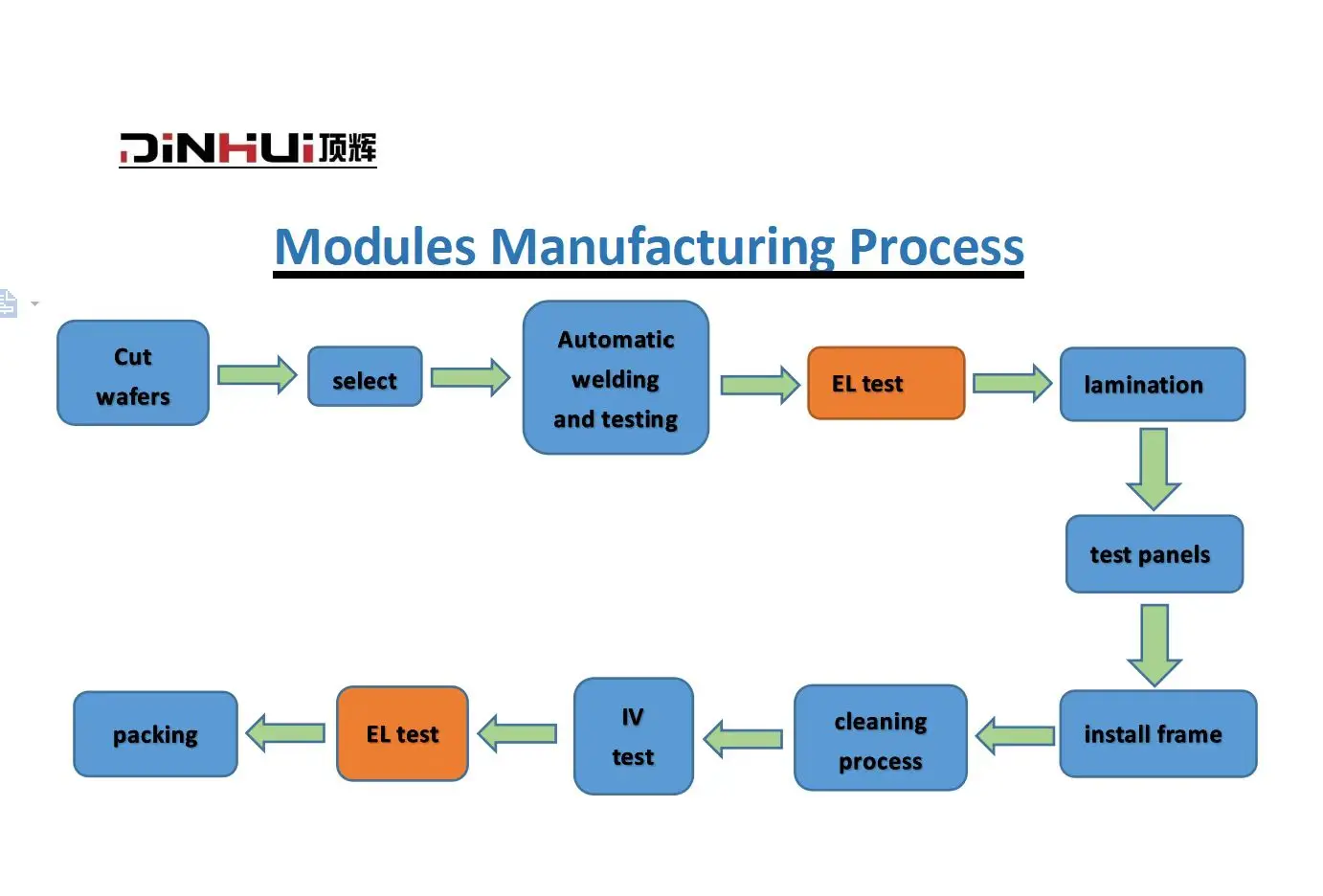

●100% fully automatic production line,ensuring 100%in-line inspection on the production line. Effectively avoiding the risk of hidden cracks and inherent defects.improving efficiency, reducing manual errors,precision welding,and maintaining uniform product quality standards.

●First-class photovoltaic testing center, up to 38 valid tests and experiments to ensure product quality.

●High, medium and low current classification to improve system output performance.

●Two EL tests before and after.12-focus EL to overcome depth-of-field differences,spatial resolution of 0.4-0.5mm high and low currents are tested separately, with zero tolerance for quality risks.

●Long-term reliability testing.The PV testing center follows the standard of 3 times thousand conventional tests to guarantee the longer life cycle of the modules.
